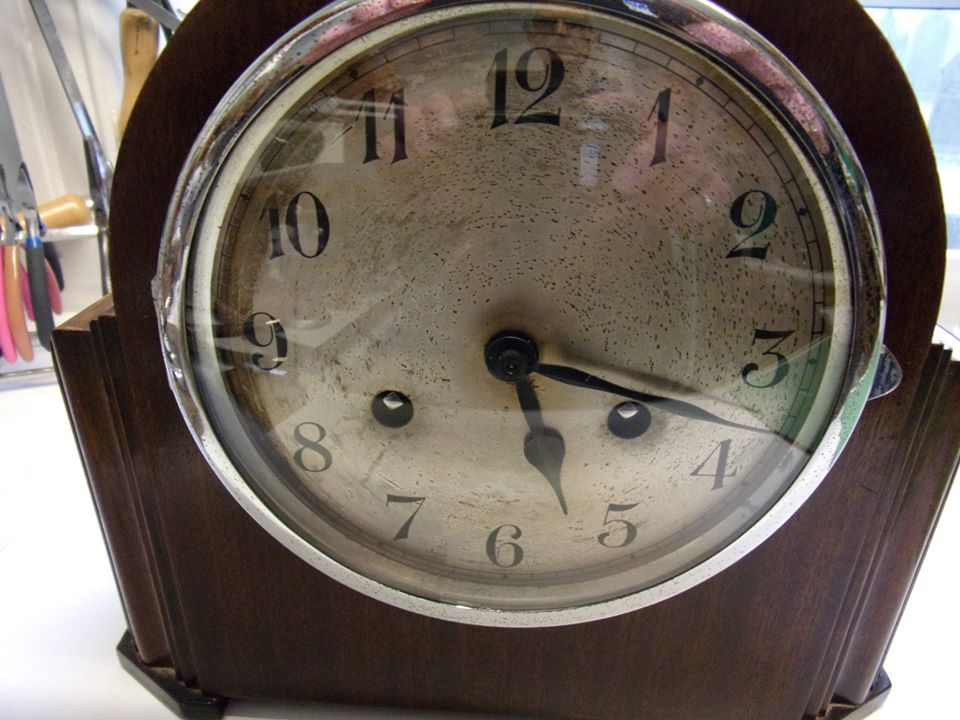

Florrie - 1940's mantel clock
Another little job we have been working on is this clock which is called "Florrie". It is the name given to this small 1940's mantel clock. She strikes on a gong and for her age ticks along quite nicely. Not bad for an old lady!.



1940s mantel clock

Florrie

















German Vienna Regulator

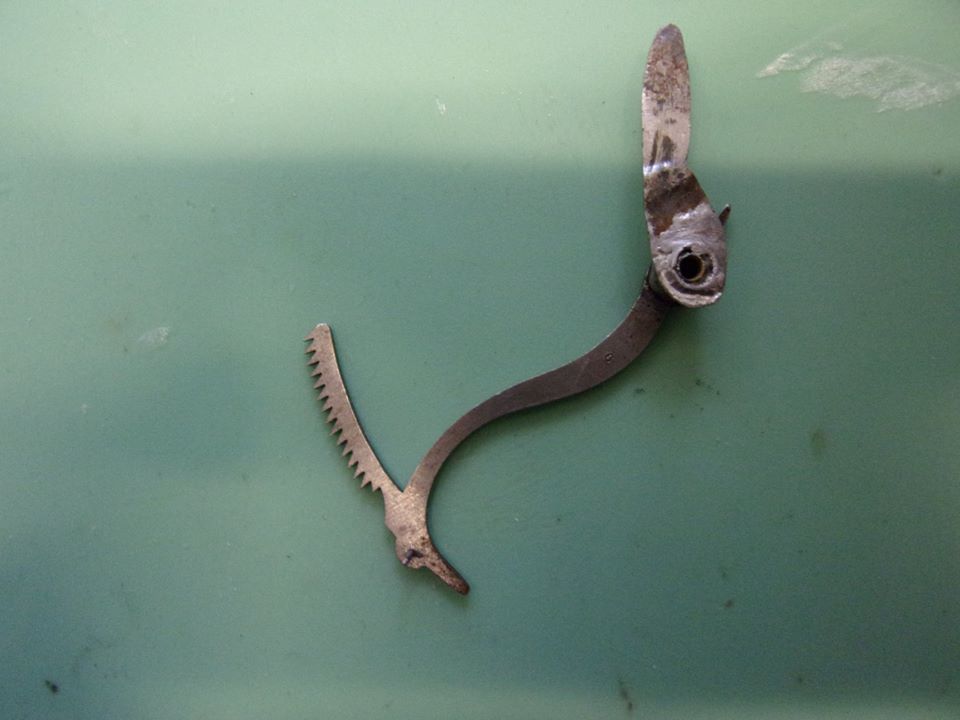

Here at Rectory clocks we are working on an interesting German Vienna regulator, made by Freiburg & Schesien - not a maker we have come across before. It has a nice pie-crust bezel and beautiful dial. The only problem is - it hasn't been working reliably for many years. Taking it apart revealed that the impulse face of the entrance pallet had a rather unusual profile, not like any seen before. It was such that as the pendulum swung, the impulse face would be moving away from the escape wheel, thereby giving little or no impulse to the pendulum! This may be why the clock has been so unpredictable. The pallet was very carefully re-ground to something like its more normal shape. So far it has kept going! The only other issue is the rack tail. Someone has had great difficulty in repairing it. Should it be left as part of the clock's history since it works, or should it be remade to look more like the original? Hmm another horological quandary.



German Vienna  clock

German Vienna clockface

Forest

Clock pallet

















German Grandmother clock
Let me introduce you to a German grandmother I met recently. Well, not quite your average older lady it must be said. This one announced every quarter hour on her Westminster chimes; and if you like levers, she had plenty of them. Made by a company called Junghans it was quite a nice clock. The only problem wss it had a most complicated (well to me at any rate), chime correct mechanism. Most three train clocks have them, to stop the chime sequence being for ever out of step with the time on the dial. Should they get "out of sequence", the clock has a mechanism that stops all chiming until the next hour, when it puts itself back in step with the hands. This clock had a most elaborate arrangement which clearly wasn't working when I received the clock. I think the last repairer must have given up. And I must admit I nearly did the same. It relies on a hook catching a pin on a wheel, to hold it until the hour comes round. The problem was, if the pin started too far away, by the time the hook started the lift, the pin went underneath it and missed it. Too near and it ended up being on the wrong side of the hook and couldn't be grabbed. When you have so many wheels to get in their pivot holes, trying to get that one wheel in exactly the right place would test the patience of any saint. Still in the end, after many unholy words and utterances, it worked. But why do horologists have to make things so complicated?



Cuckoo Clock

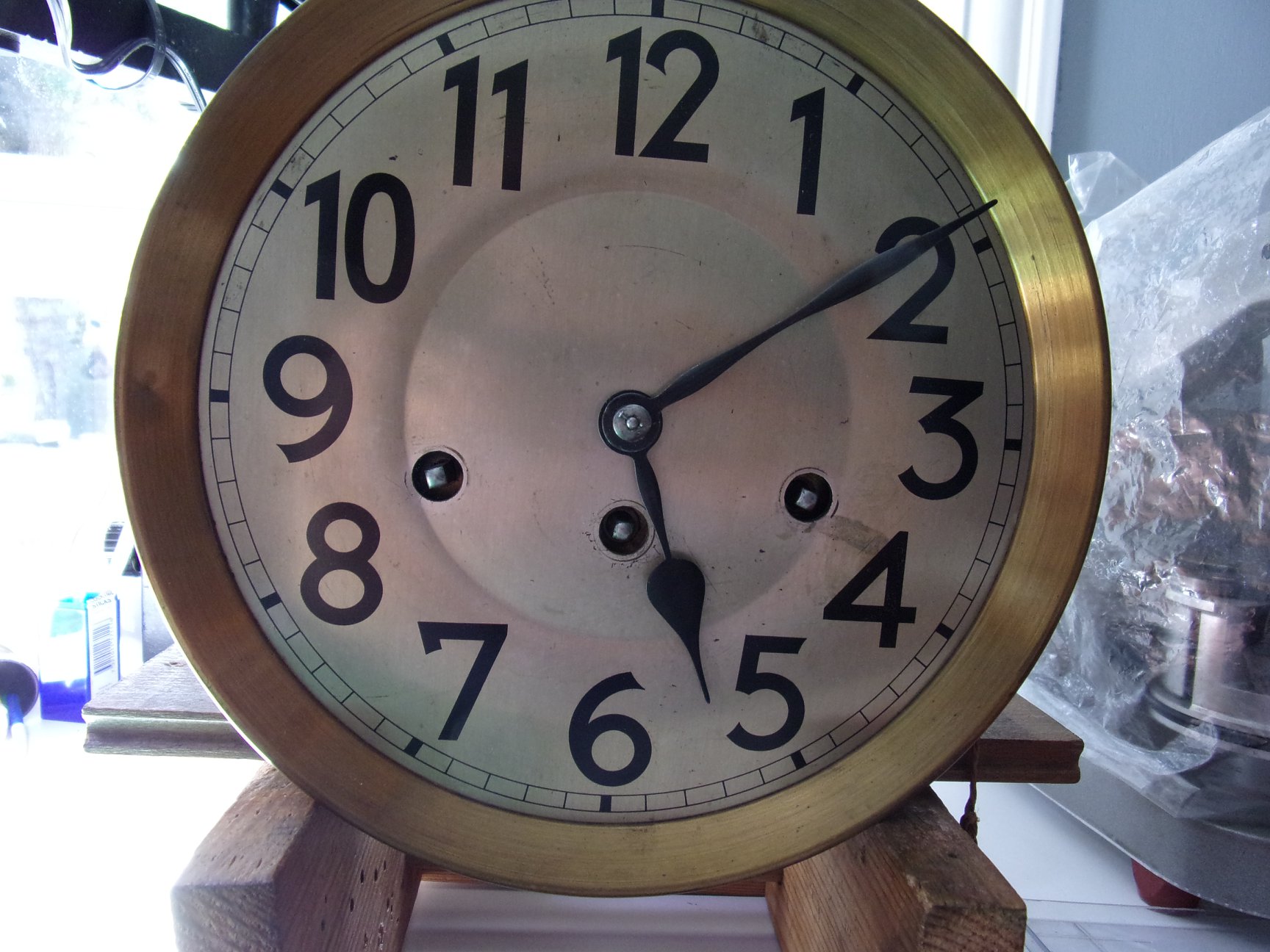

Grandmothers clock face

Forest

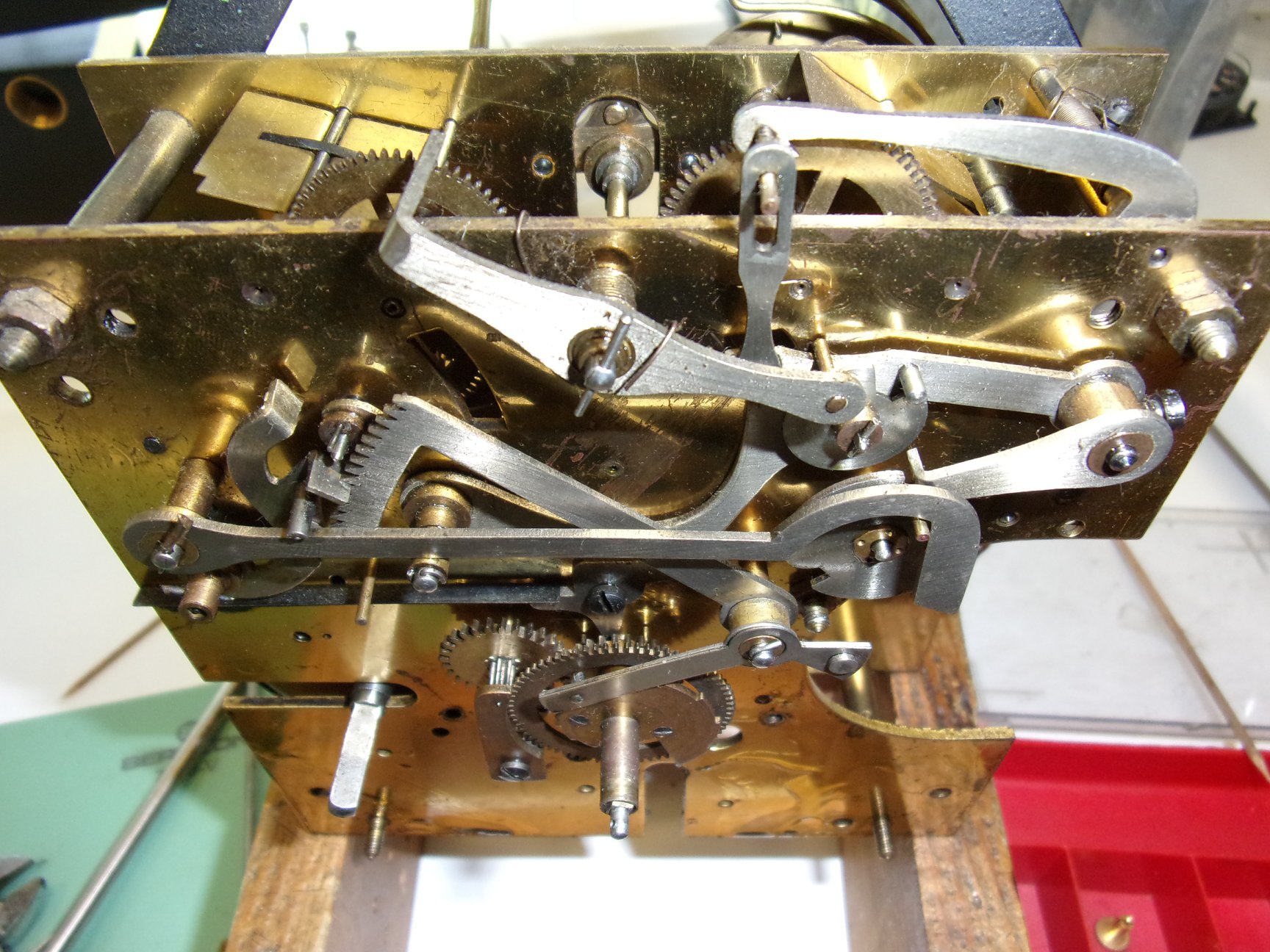

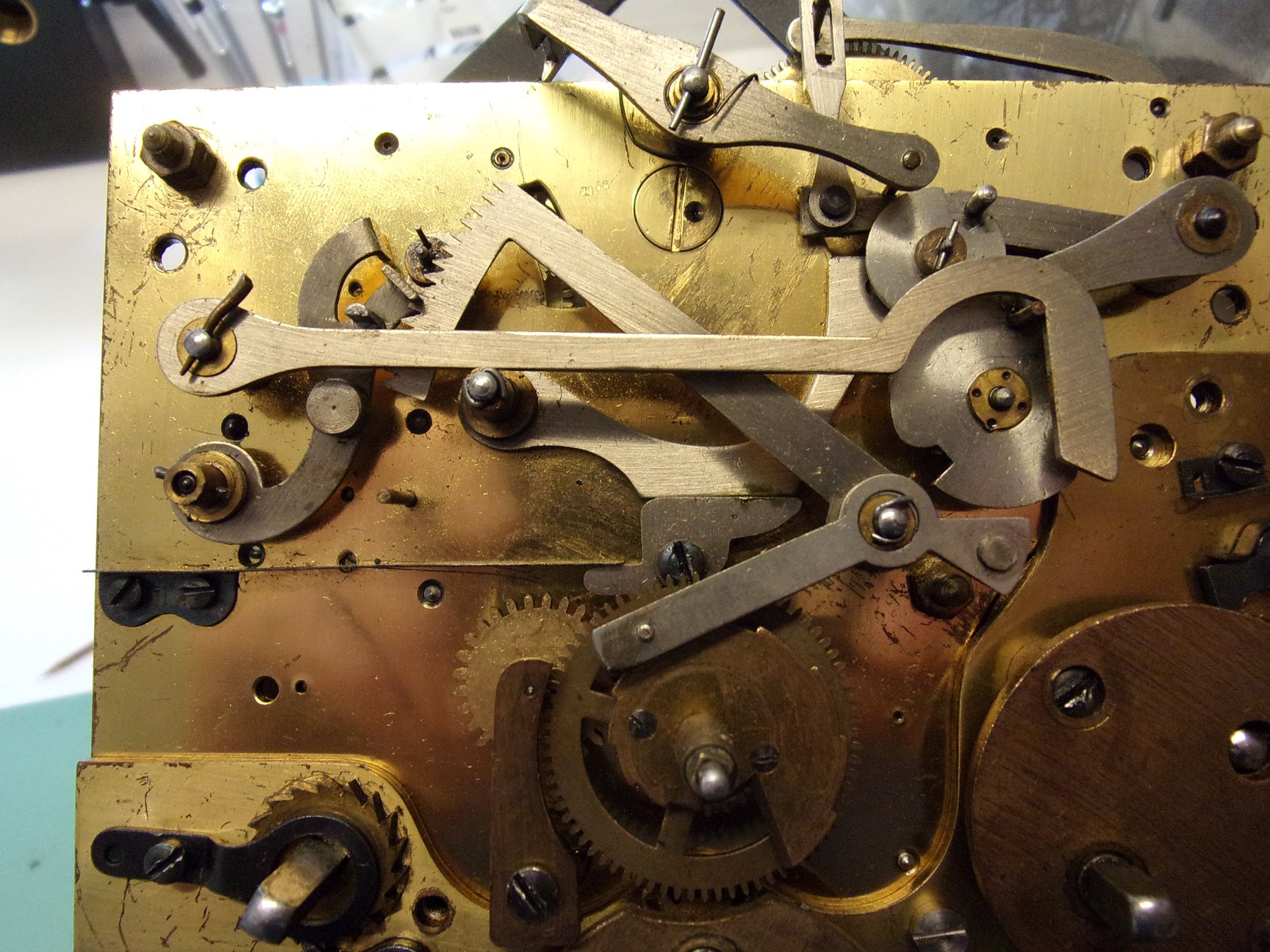

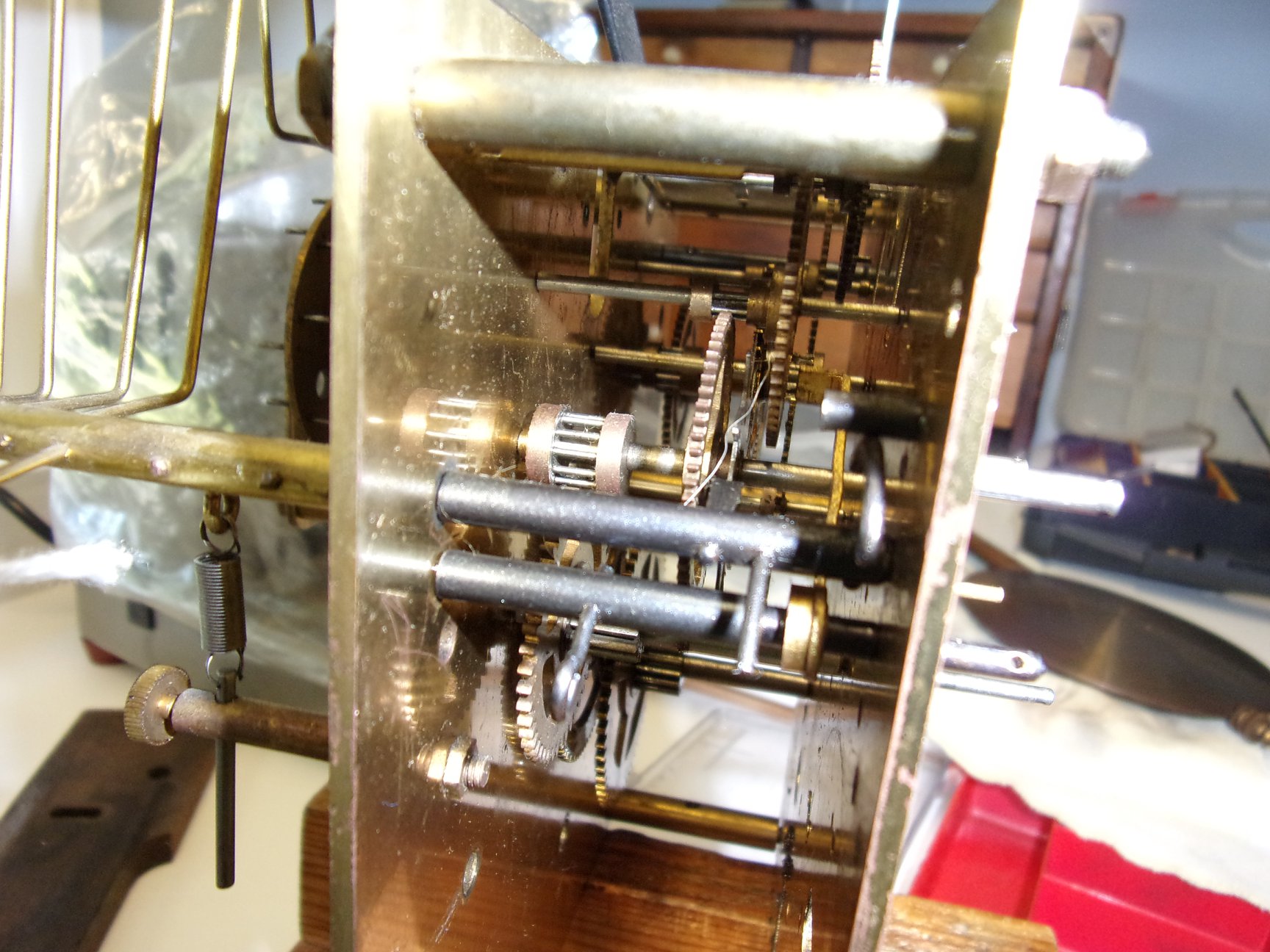

A not so simple lever system

Forest

Cleaned and working

Forest

Before cleaning

















Three train bracket clock

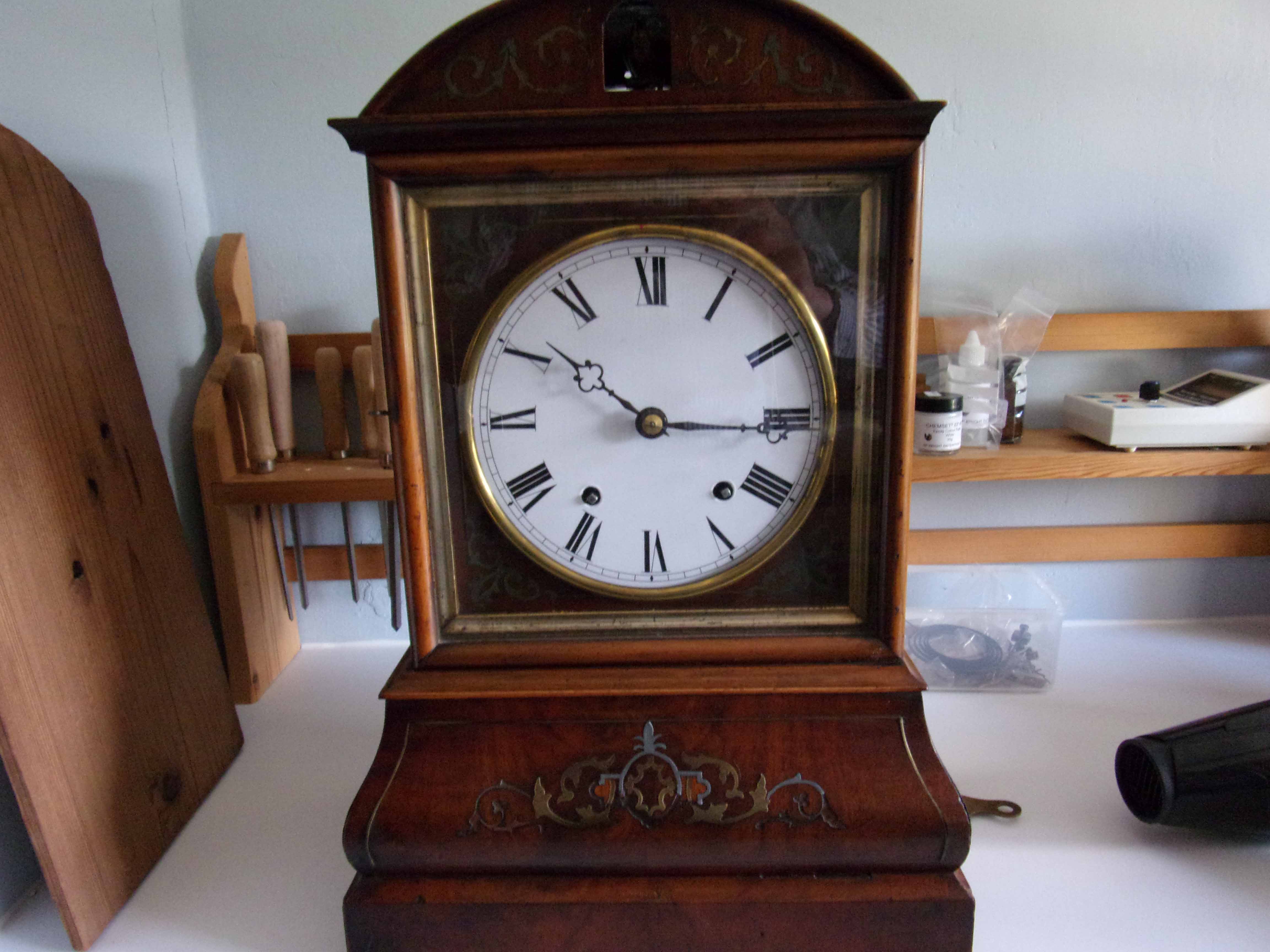

The Germans make some very nice quality clocks. Here is a three train bracket clock that needed some attention.



Cuckoo Clock

Clockface

Forest

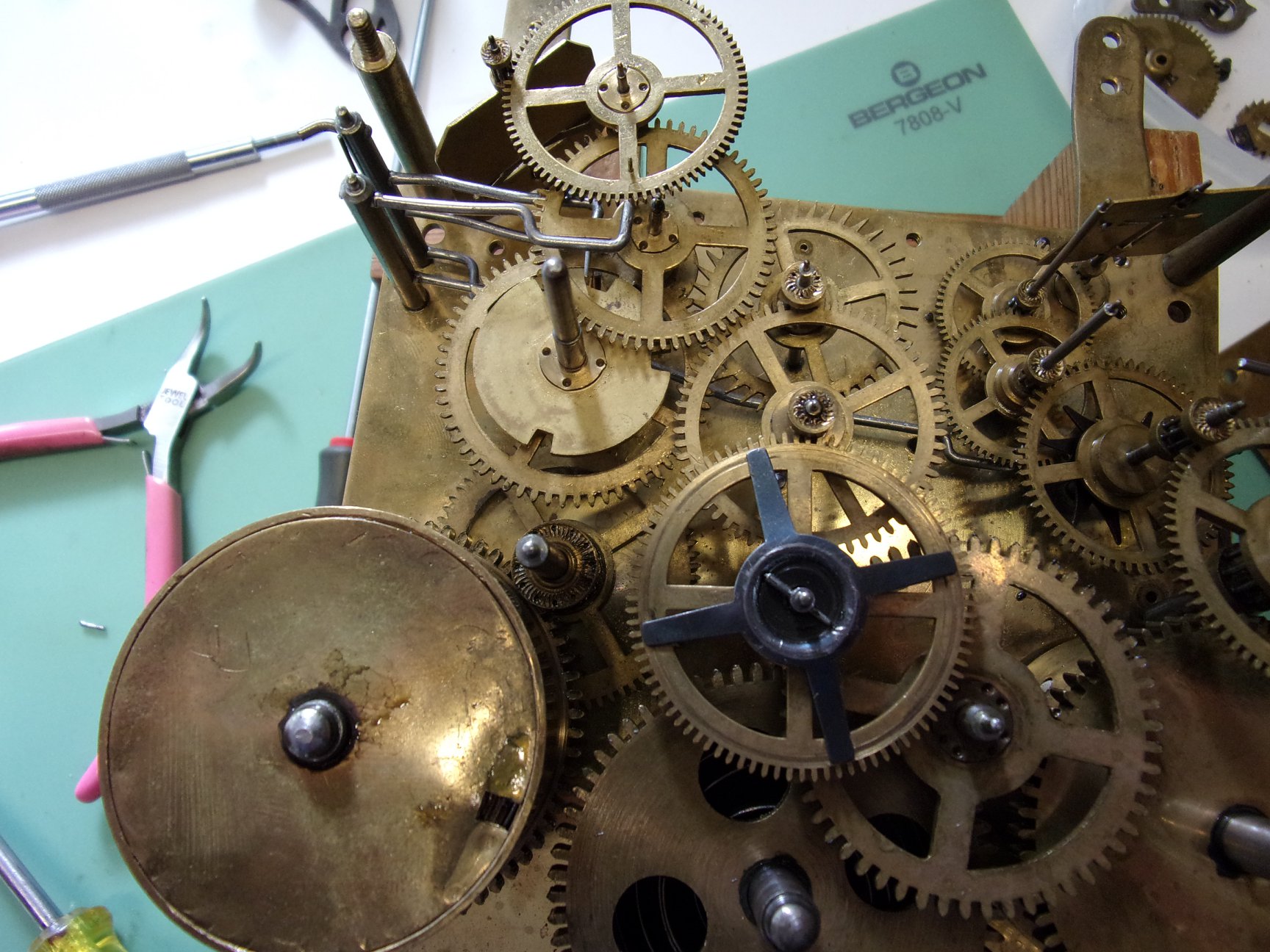

Three train bracket movement

Forest

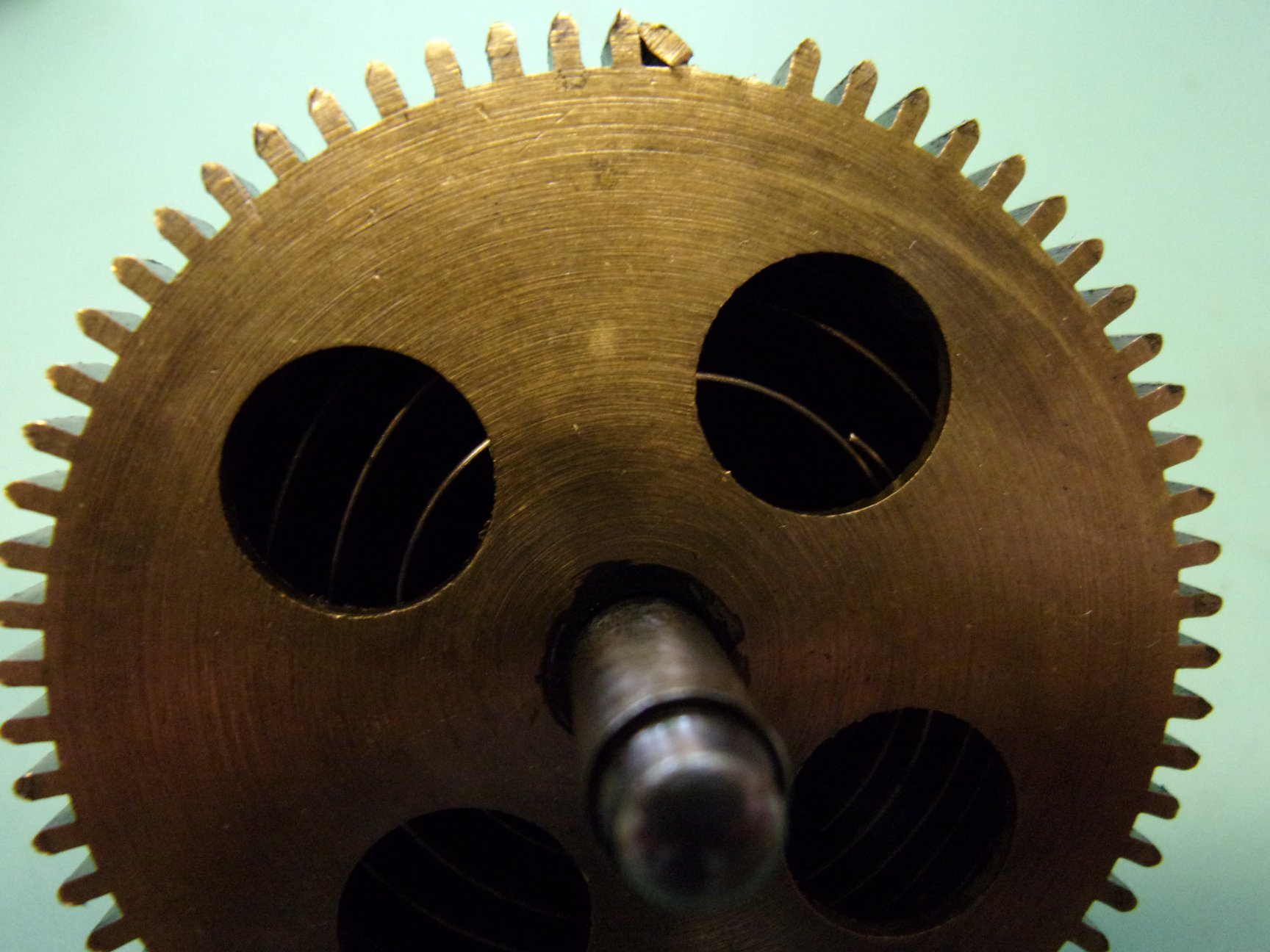

Broken tooth in need of repair!

















German ting-tang
Lest it should be thought that only longcase (grandfather) clocks are repaired here at Rectory Clocks, here are a few other clocks that have been received recently. Firstly the German ting-tang. Who doesn't like a ting-tang. Westminster chime clocks are alright, but after a while they can get on your nerves, especially when they start to run down. But the ting-tang never fails to disappoint. With its gentle single ting-tang on the first quarter, two ting--tangs on the second quarter, three at a quarter to and then at the hour the ting hammer is lifted aside, and the clock just strikes the hour on a single gong! Ingenious.



Cuckoo Clock

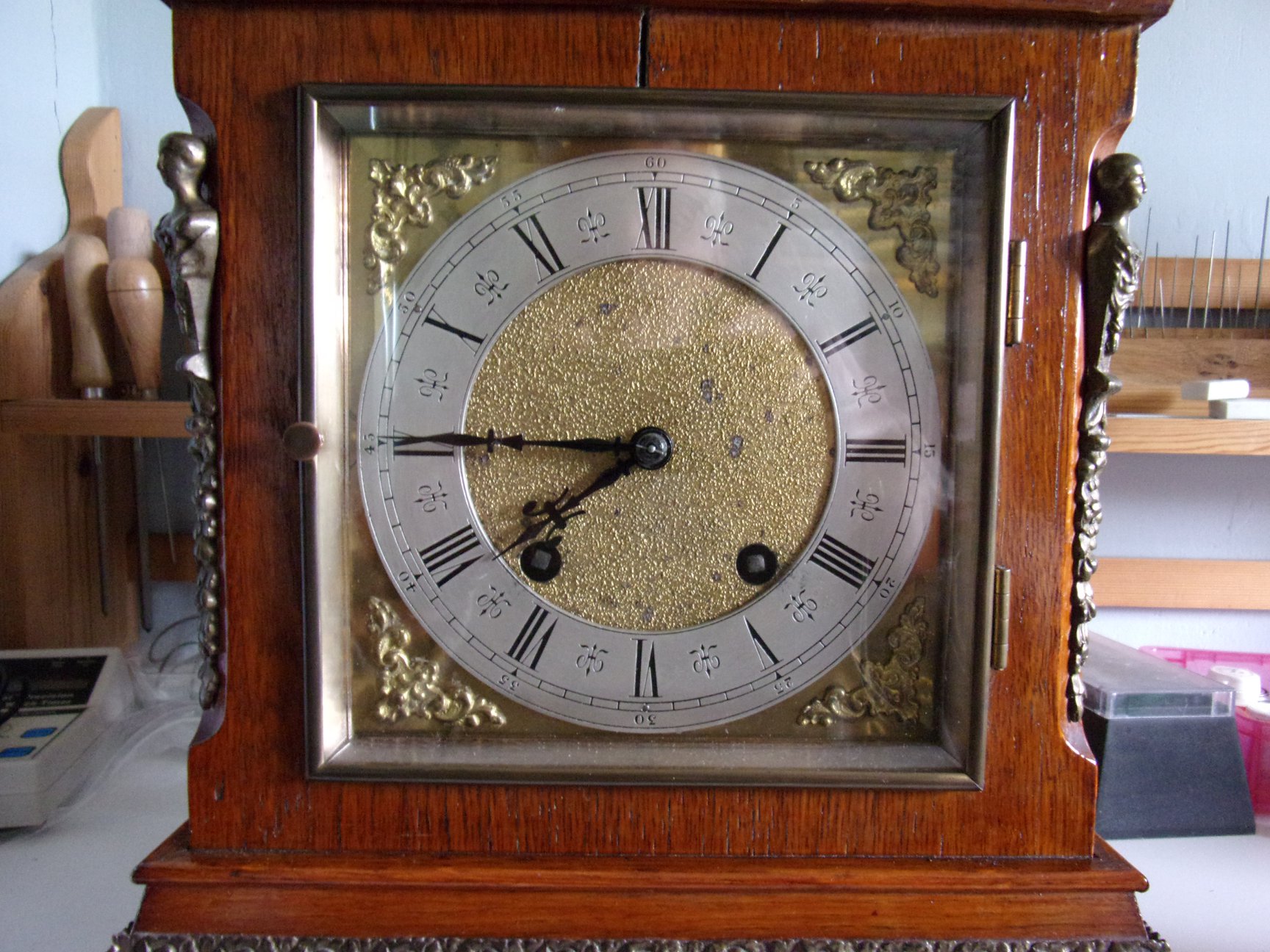

German ting-tang clock face

Forest

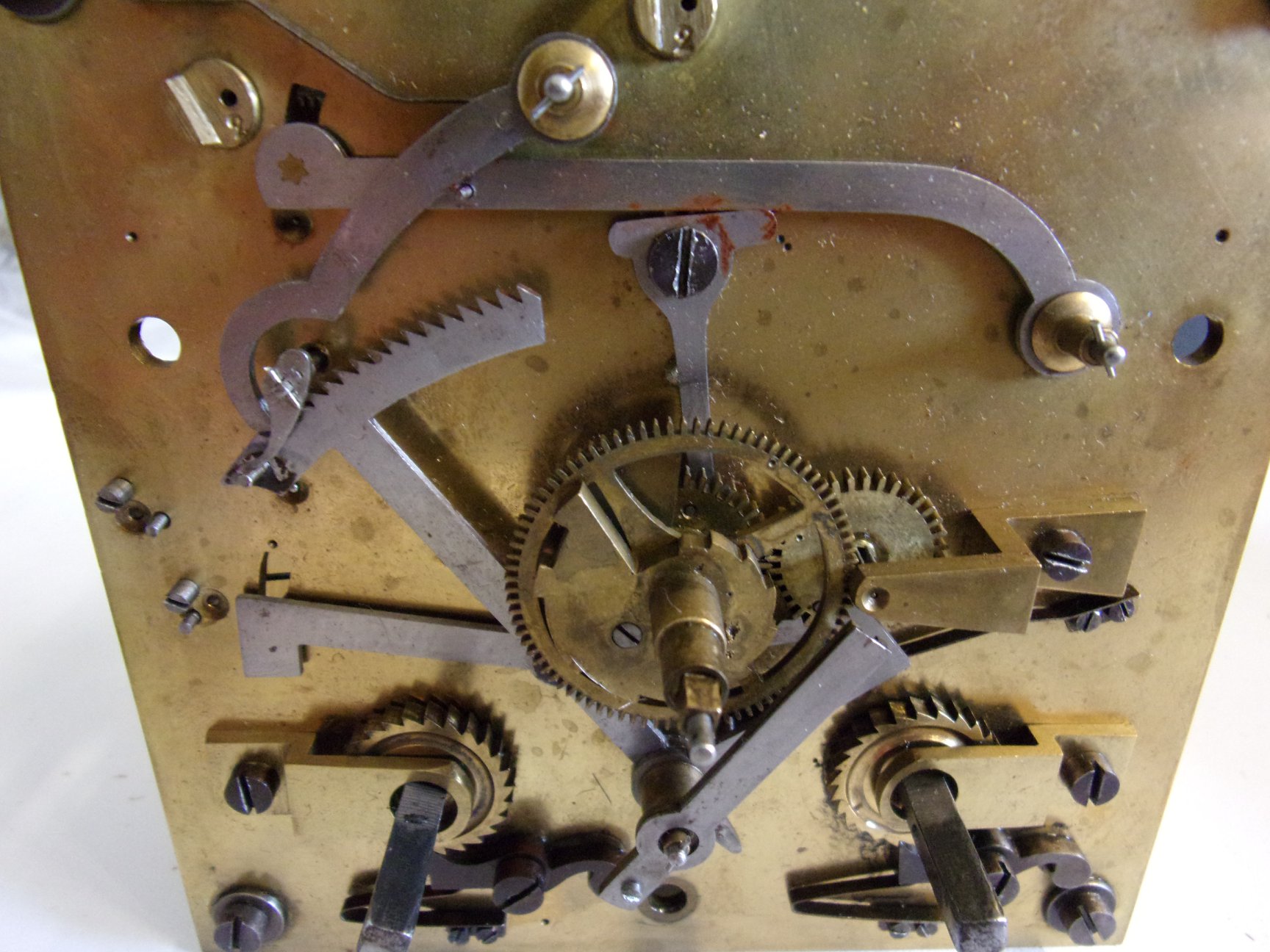

Ting-tang movement
















Longcase clean and repair
Longcase clocks are often thought of as the "tractors" of the horological world because of their size. They are however on the whole nice to work on, not least because of their age and history. However, just occasionally you come across one that has more than its fair share of problems. This clock was probably made around 1780 making it a very early white dial longcase. When it arrived I think that must have been the last time it was cleaned. This poor old clock had suffered some terrible repairs such that abuse might be a more accurate word. Still after hours of cleaning and repairing it is now running once again.



Cuckoo Clock

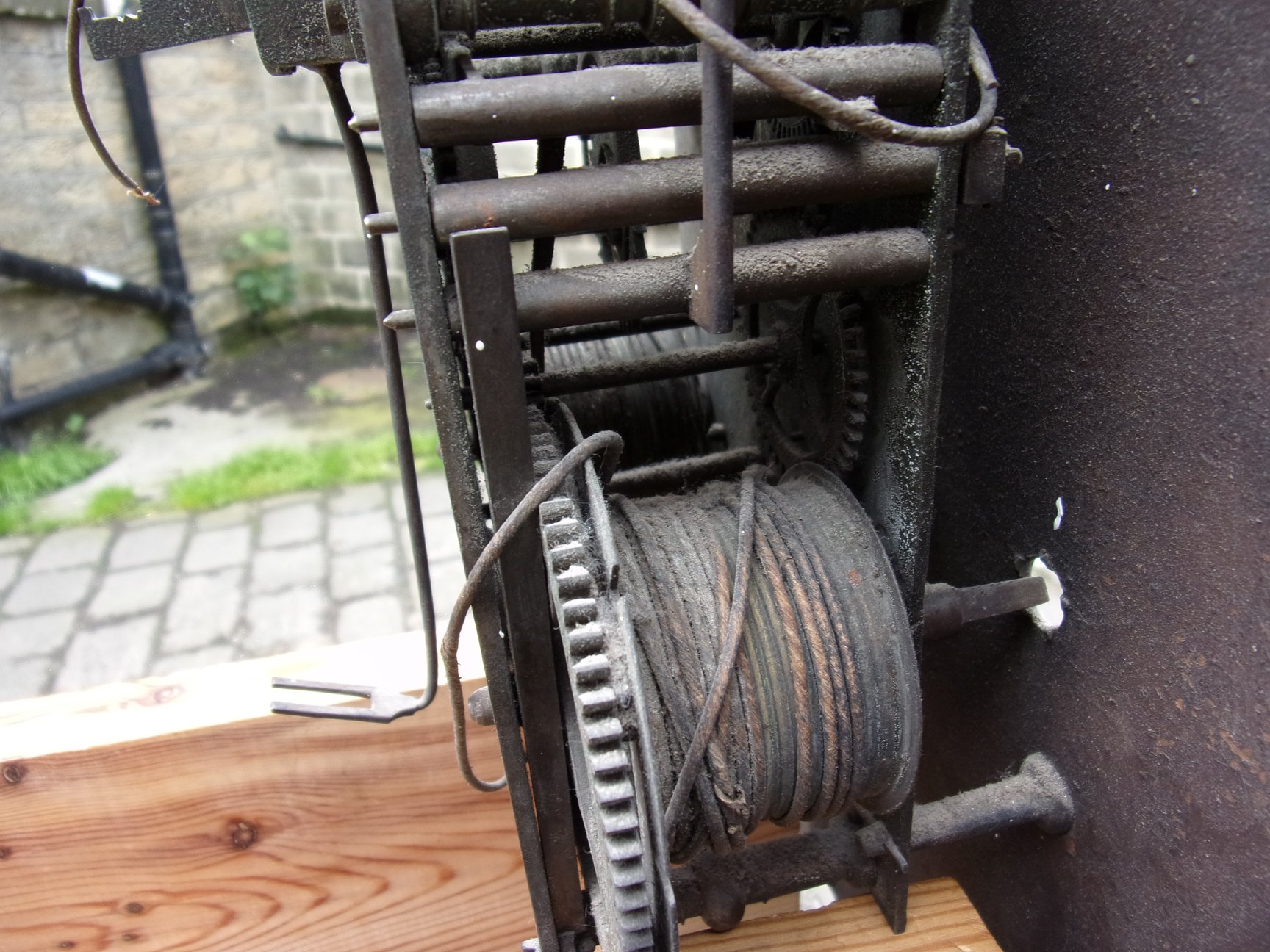

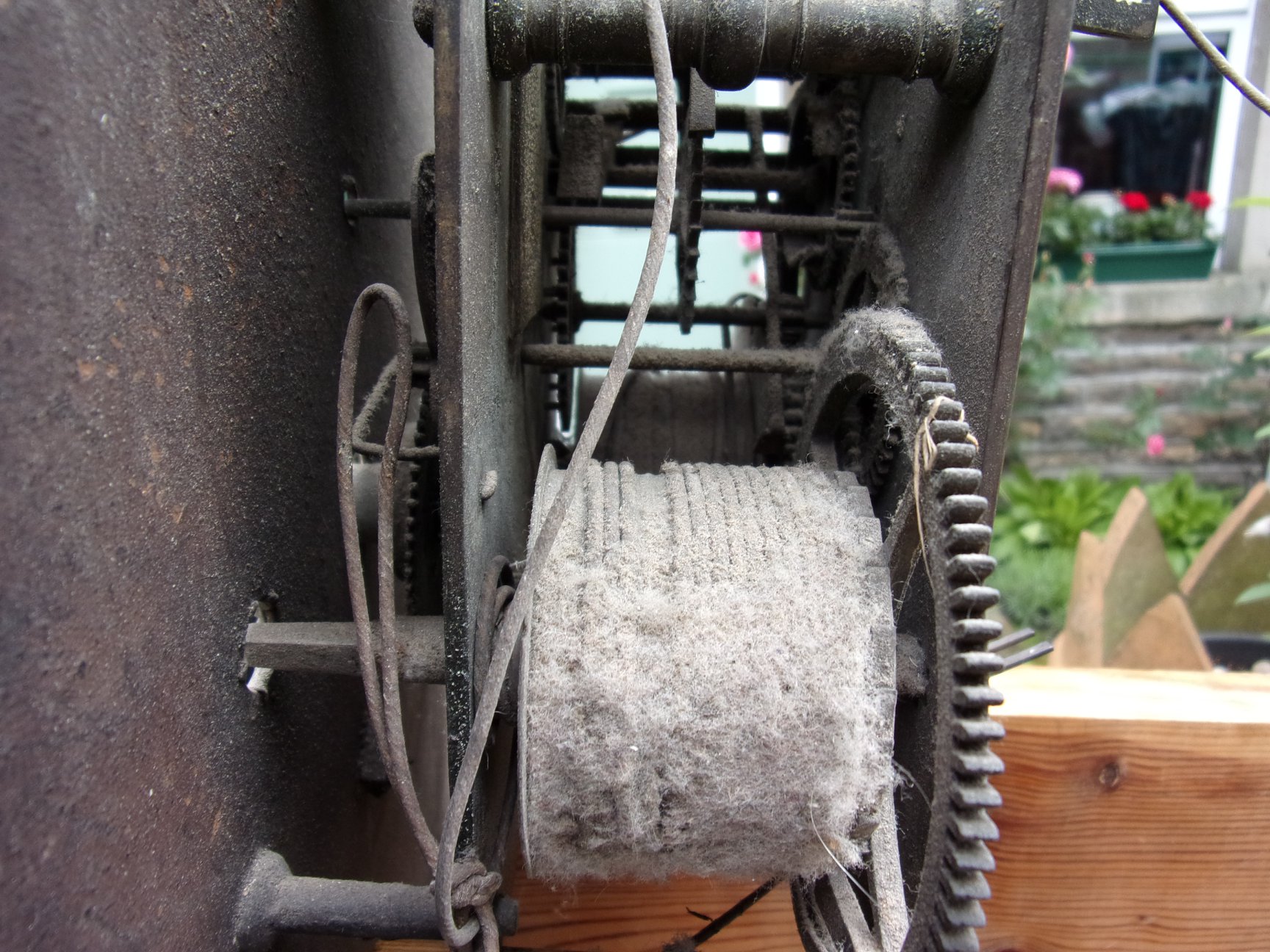

In need of some cleaning!

Forest

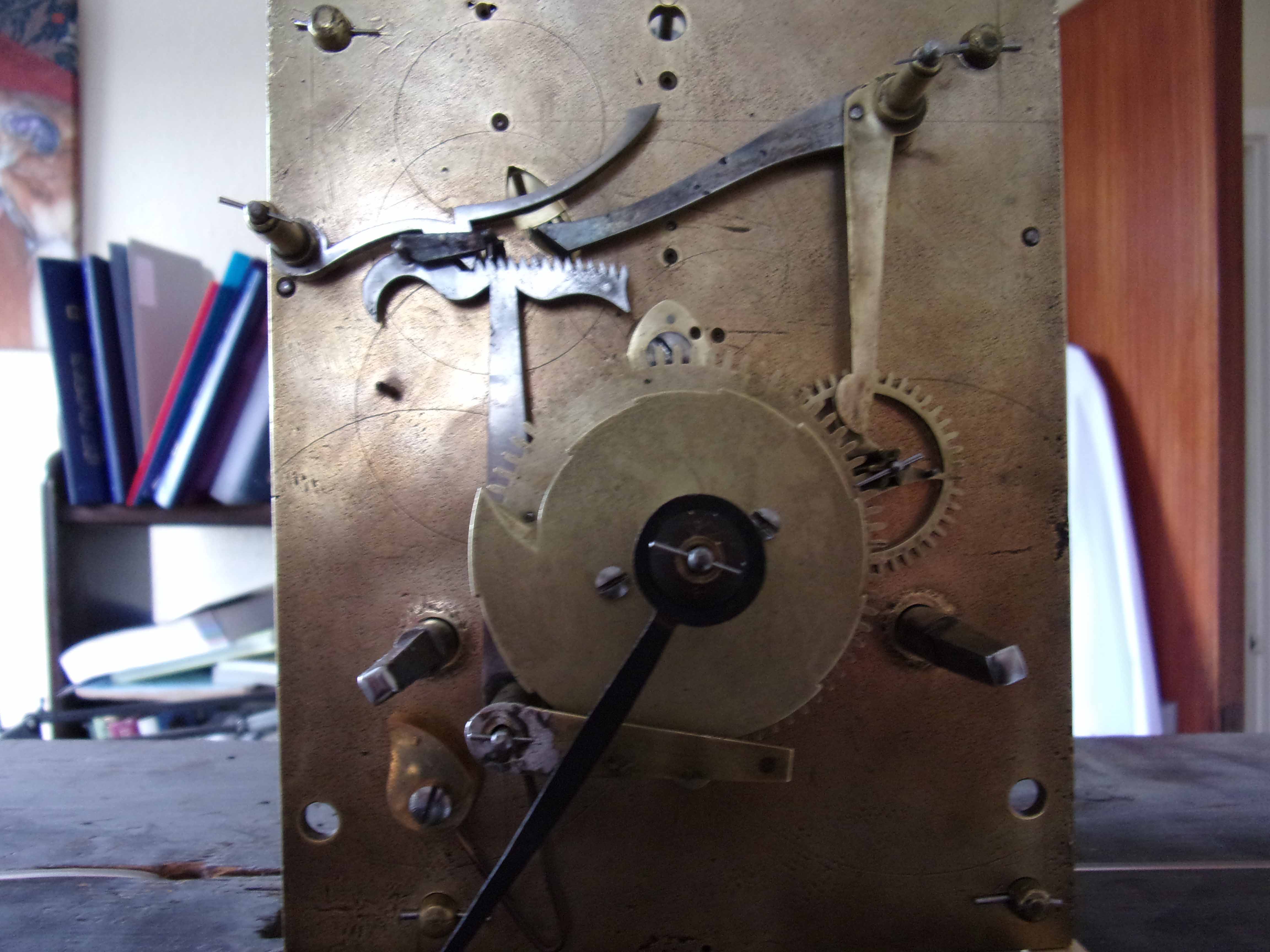

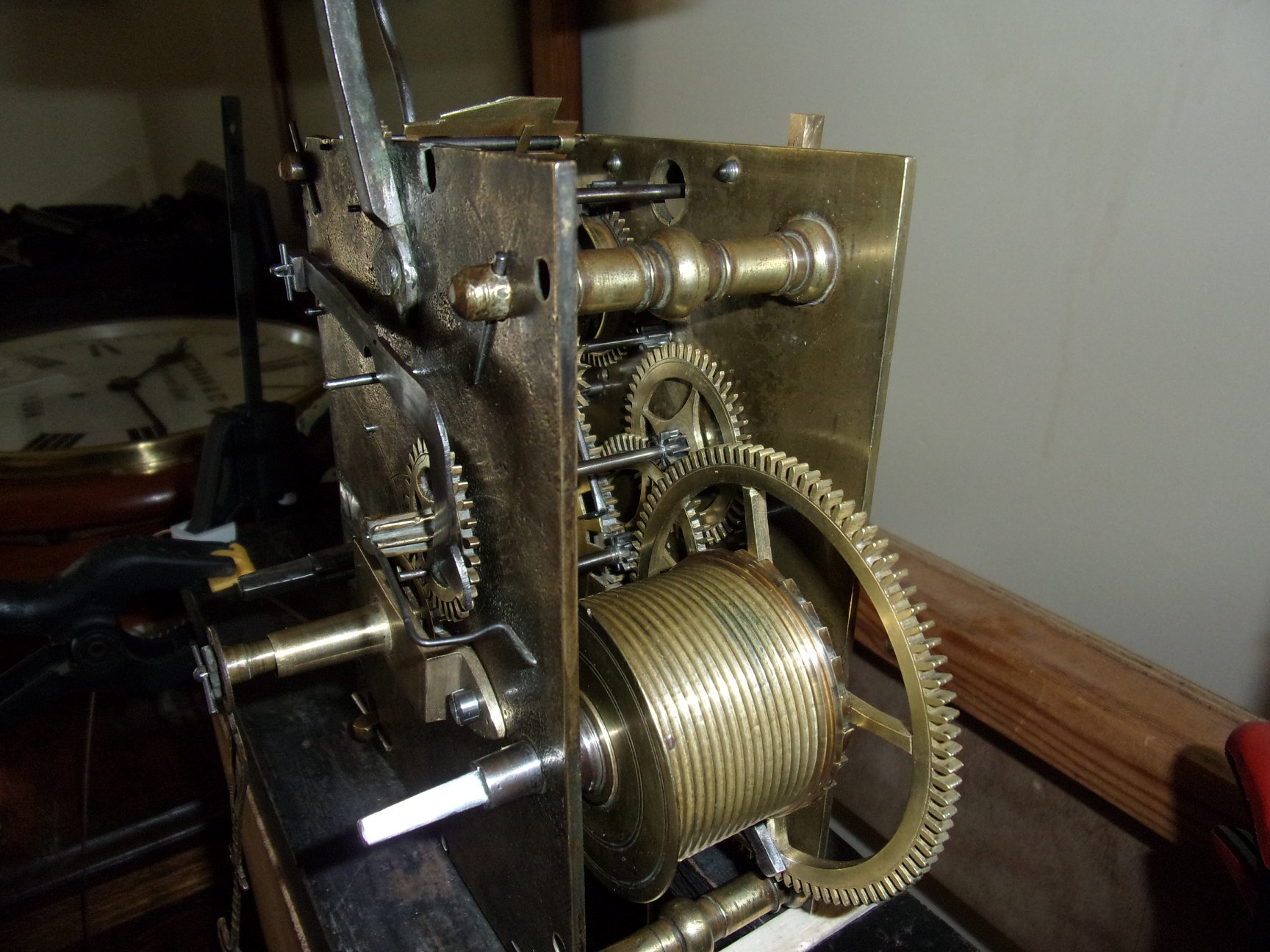

From the other side

Forest

After cleaning!

Forest

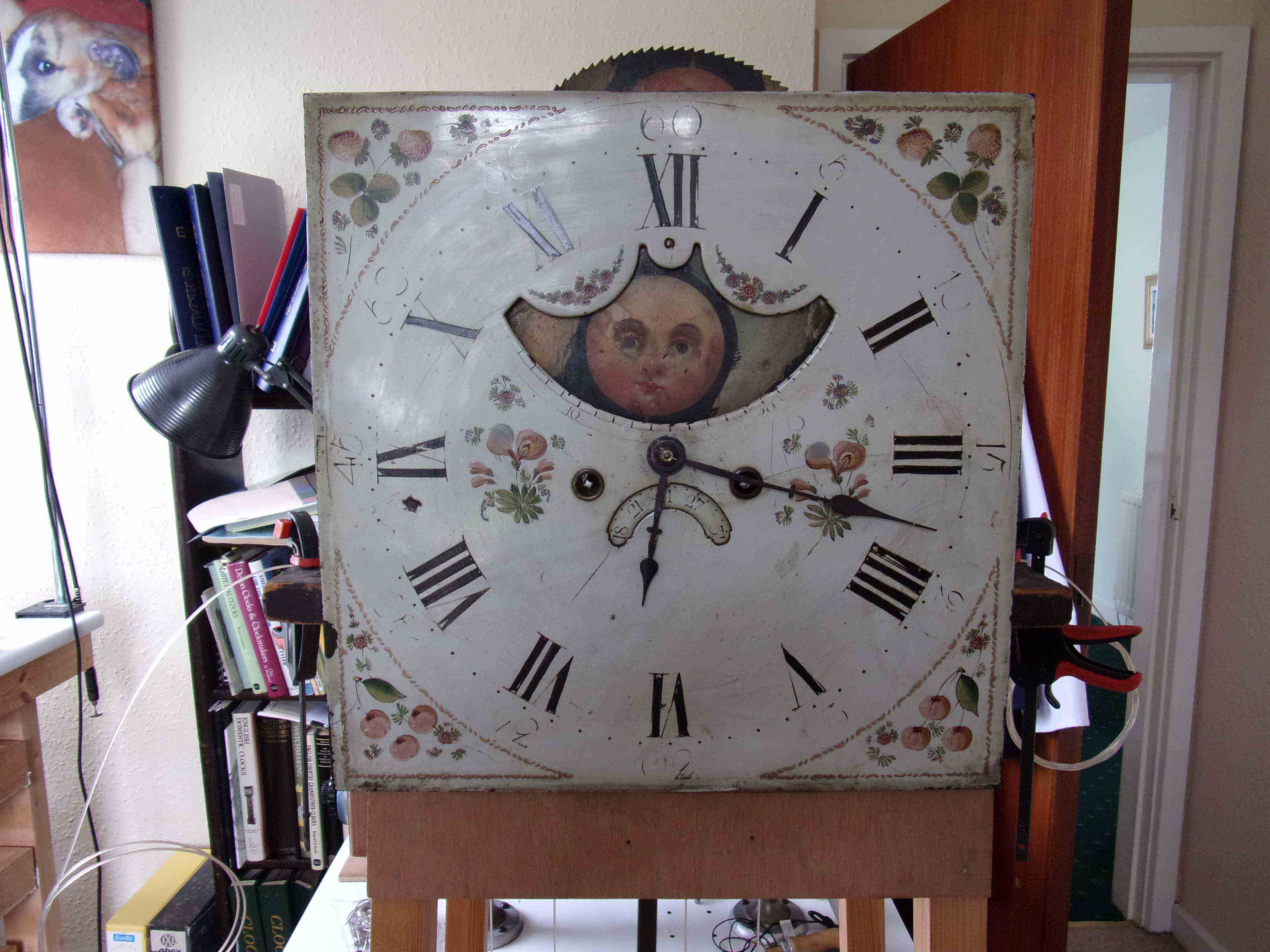

Clockface

















 Holtum of Coventry Longcase

A longcase by Holtum of Coventry, although no one seems to have heard of him! It is quite a nice clock but has had a hard life. Originally countwheel striking as you would expect for a clock of this age (around 1720), someone decided to update it to rack striking! Oh well I guess the owner might have wanted the latest innovation. Then someone probably a century later, decided this clock would never have had such a striking mechanism, so they decided to convert it back! The poor old clock! Still it works, although one of the teeth on the minute wheel decided to give up the ghost.

holtum_clock

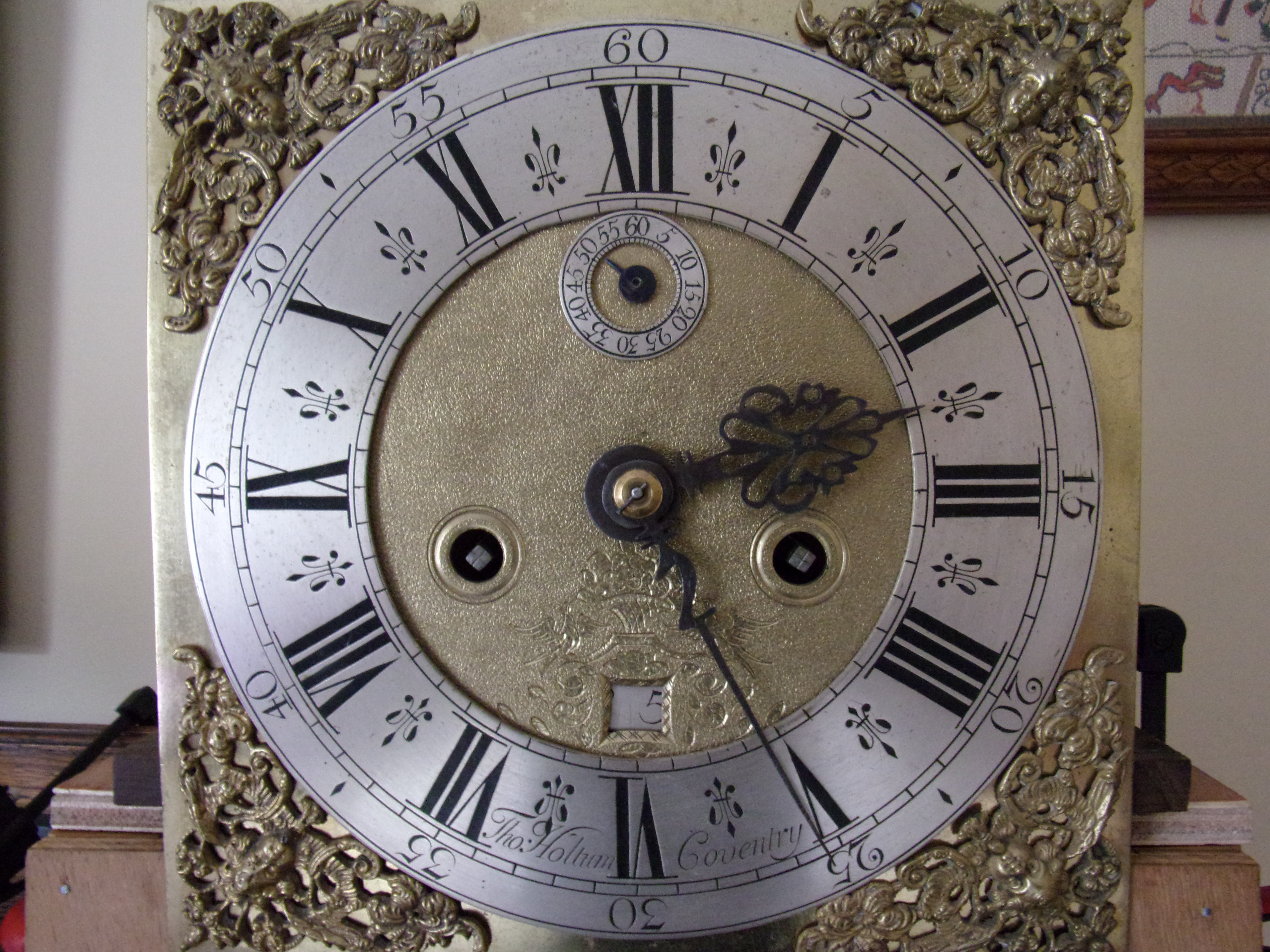

Clock face


Forest

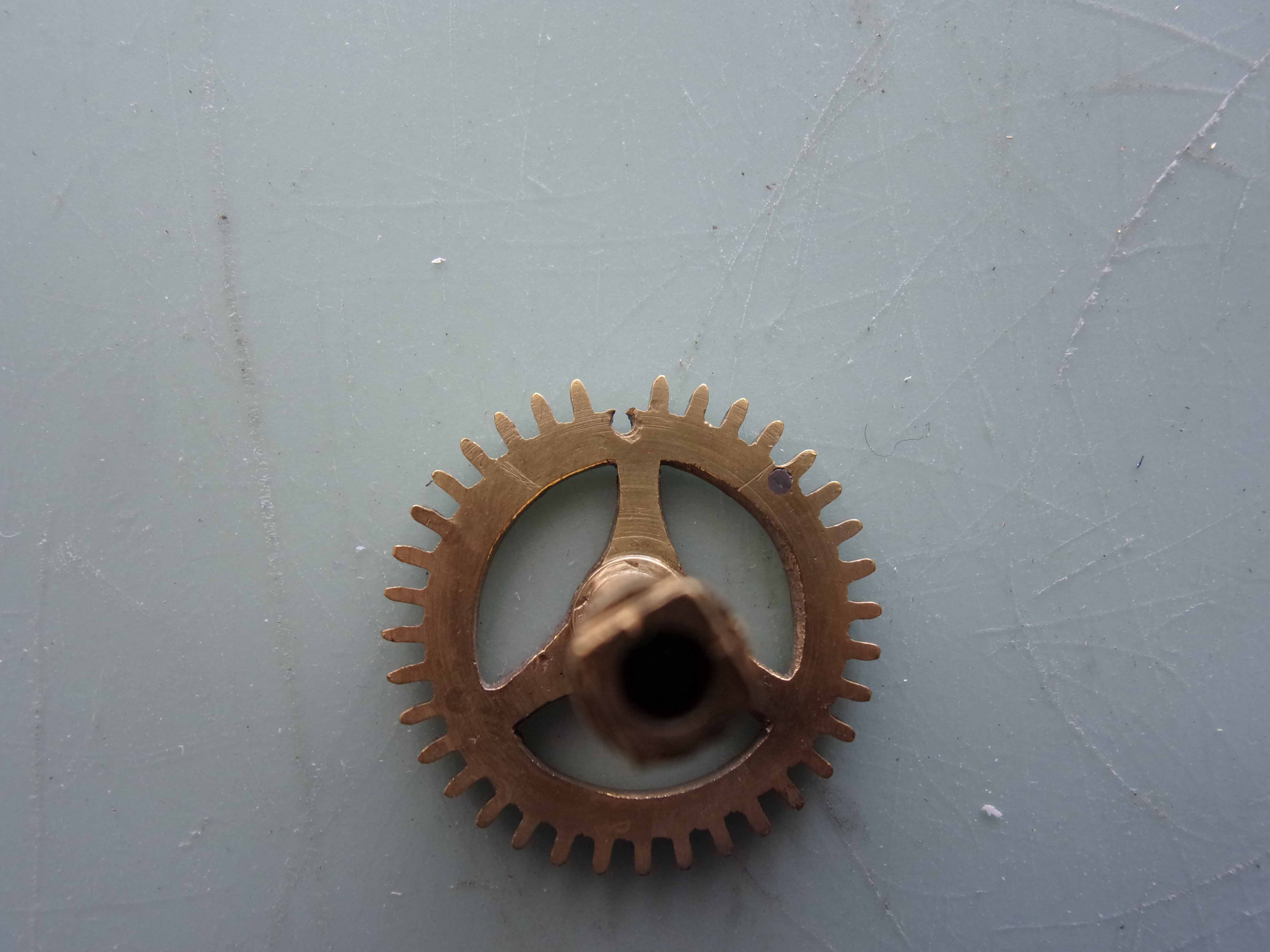

Minute wheel missing a tooth

Forest

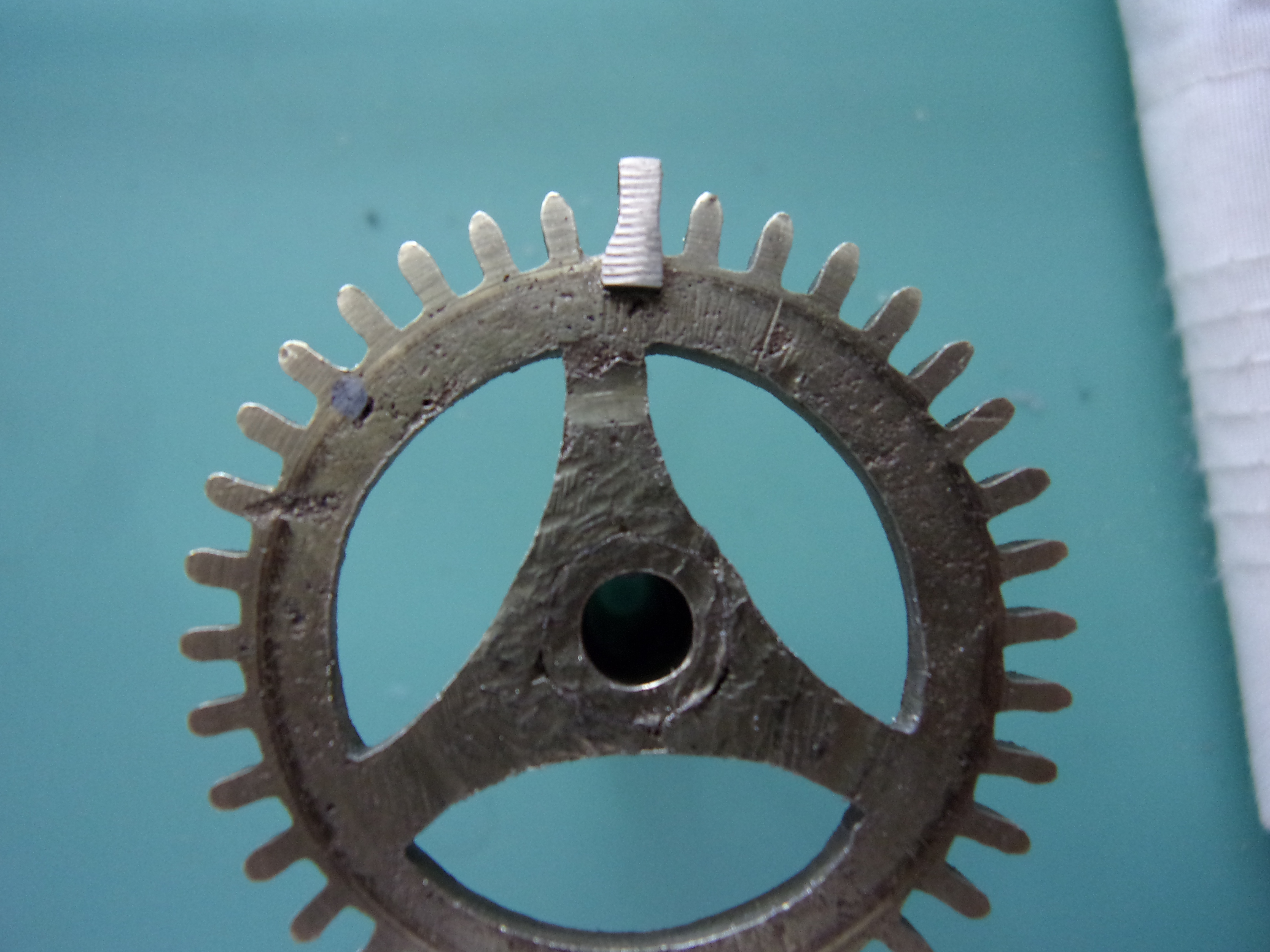

Minute wheel halfway through repair

Forest

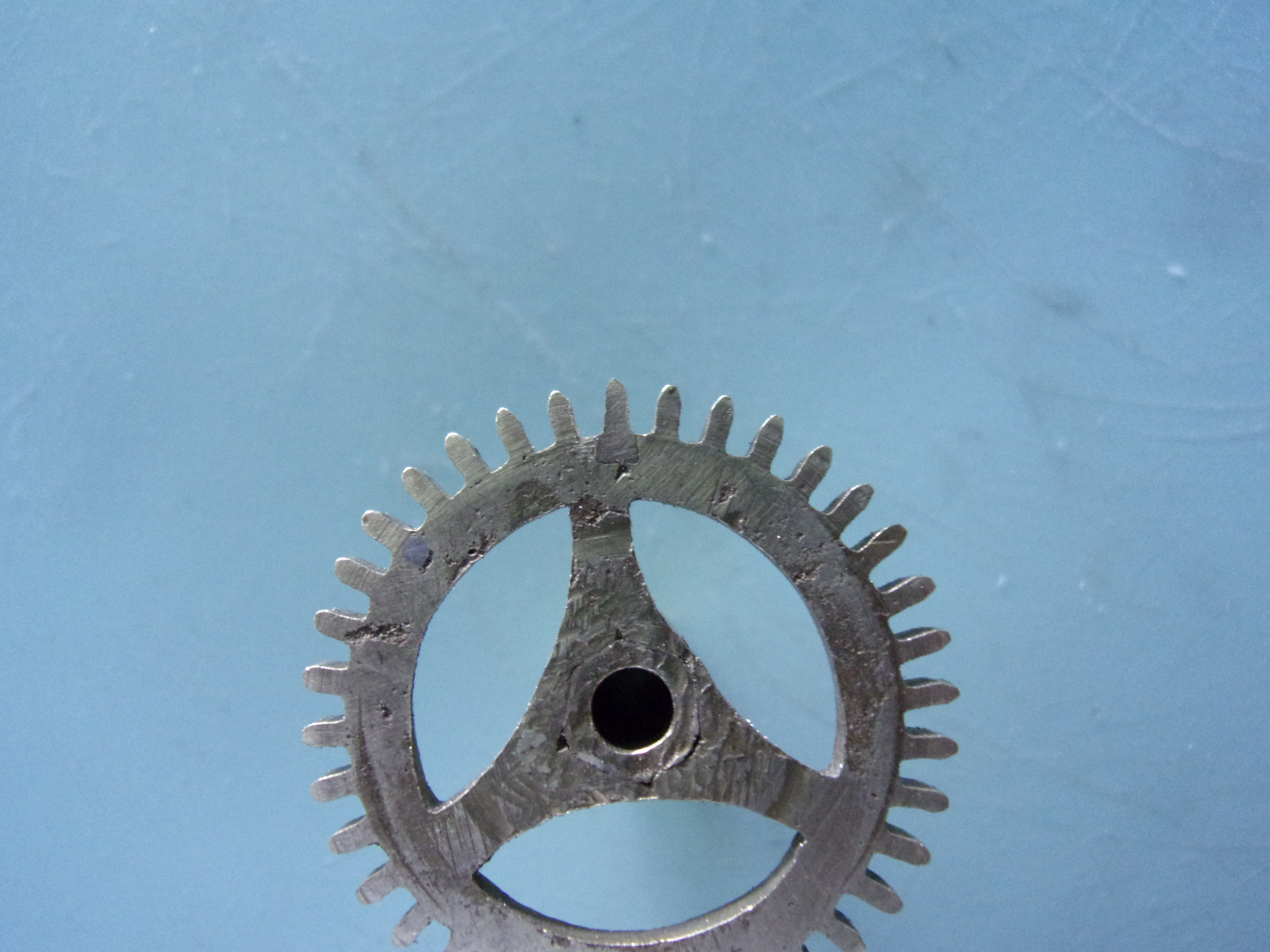

Repaired and cleaned minute wheel

Kamerer Cuckoo Clock
How's this for a cuckoo clock, not your average one, that's for sure. It was made by a German manufacturer called Kamerer. They were famous for "Trumpeter" clocks, where a little man came out through the door and "blew" his trumpet to sound the hour, rather than a cuckoo. They are in fact very rare. So back to this clock. You cannot help feel sorry for the cuckoo who has been confined to his home for the last 50 years as the clock hasn't been working. Then to cap it all he has caught a nasty dose of woodworm! Still with the bellows repaired, some of the missing levers replaced, he makes a noise once more. Unfortunately his front door is missing and he doesn't come out very far, but that may be he is conscious of his appearance!



Cuckoo Clock

Kamerer Cuckoo Clock once repaired

Forest

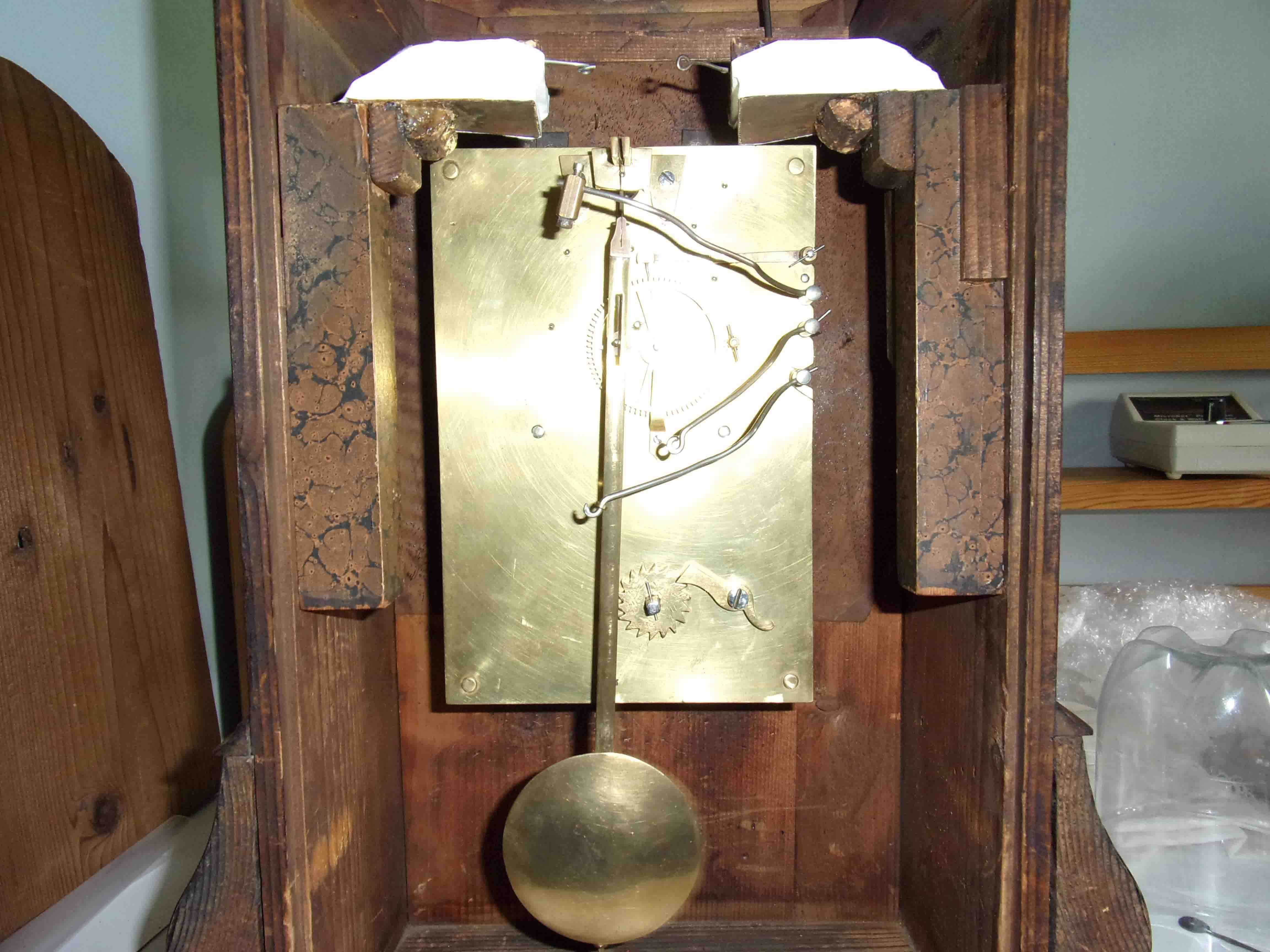

Kamerer Cuckoo Clock movement

















Alarm Clock

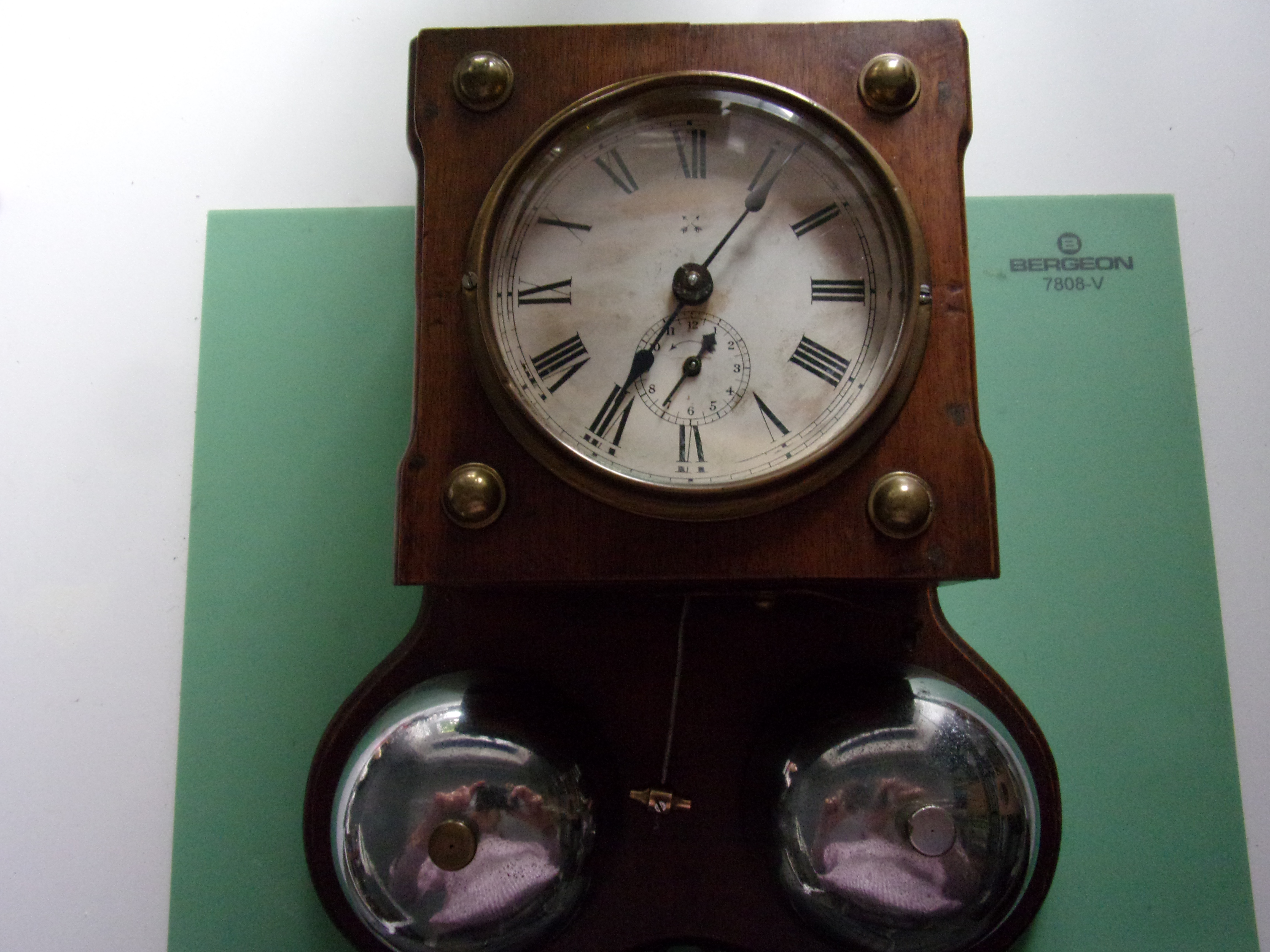

How’s this for an alarm clock.  Never be late for work again!  Every sound sleeper should have one of these.  Fixed to the wall of the bedroom, it would have you out of bed in seconds, that is provided your heart didn’t give out!  Actually it wouldn’t look out of place in the local fire station, and also might come in handy at the general resurrection! Made by the Hamburg American Clock company it makes a noise that cannot be ignored.  I’m not sure of the target market for a clock of this type, perhaps it was just for the office.  This particular clock had a broken spring, although the alarm still worked.  With the movement cleaned and a new spring fitted it is now ready to be sold to someone who is either a sound sleeper or as deaf as a post.



American longcase

Alarm Clock

















American steeple clock with alarum

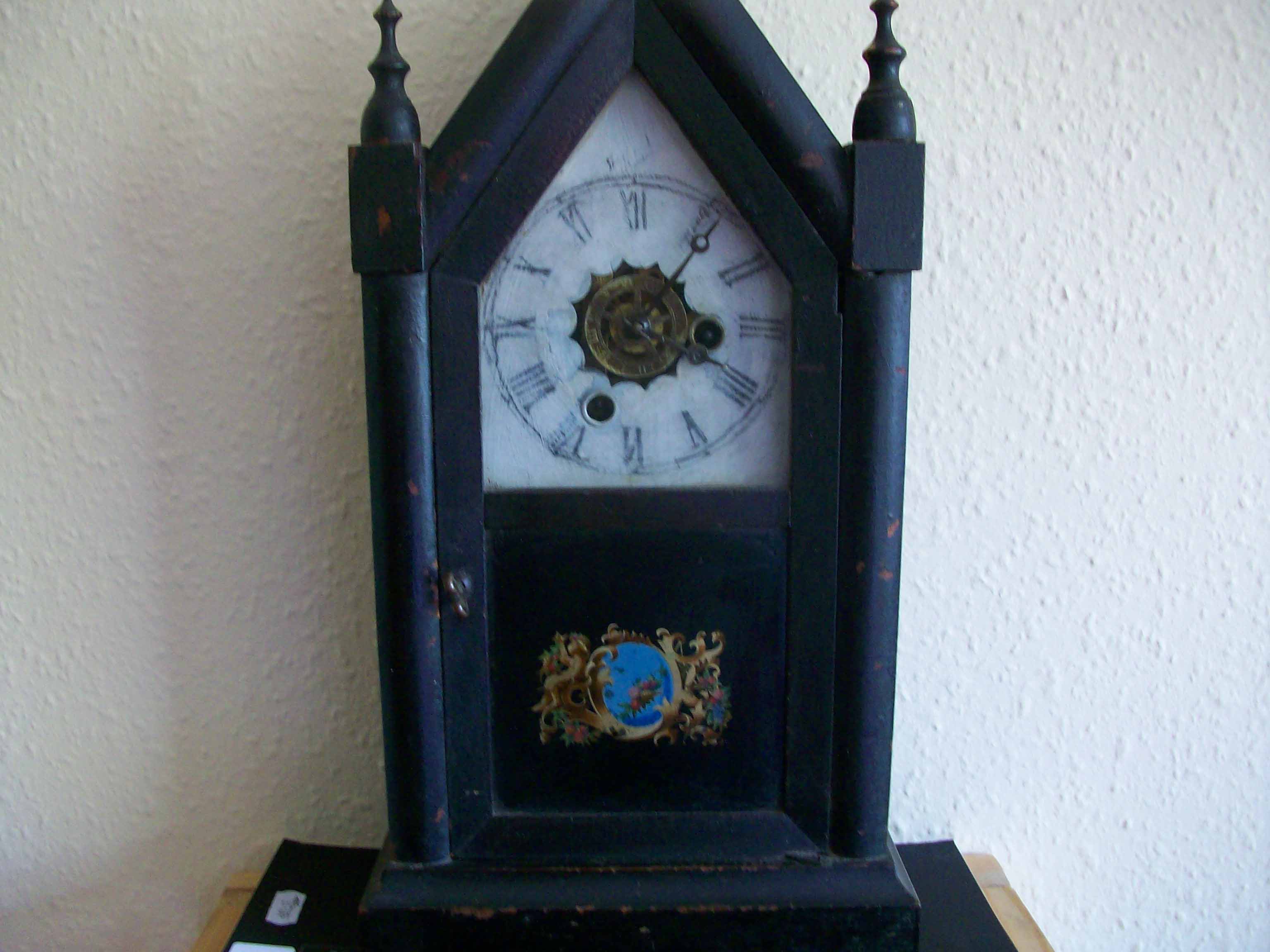

American steeple image 1

An American steeple clock that had seen better days.  The dial had been repainted rather crudely and the case had been covered with black paint.  During the cleaning of the movement, the owner was happy for the paint on the case to be removed.

American steeple image 2

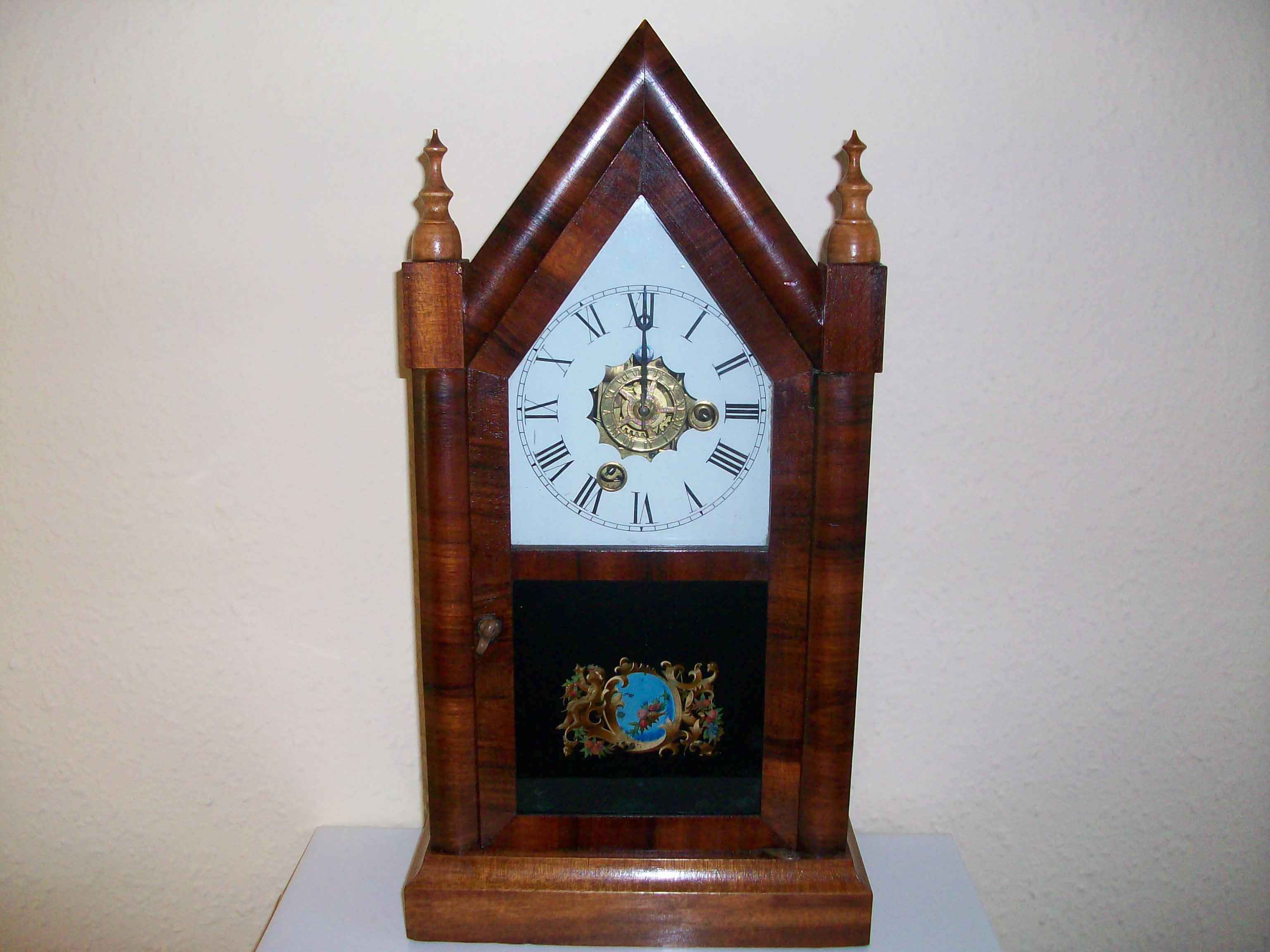

The clock restored to its former glory! We were all startled with what we discovered underneath!  The dial was professionally repainted using the original dial plate.






























Longcase clock by Furnival of Oldham



American longcase

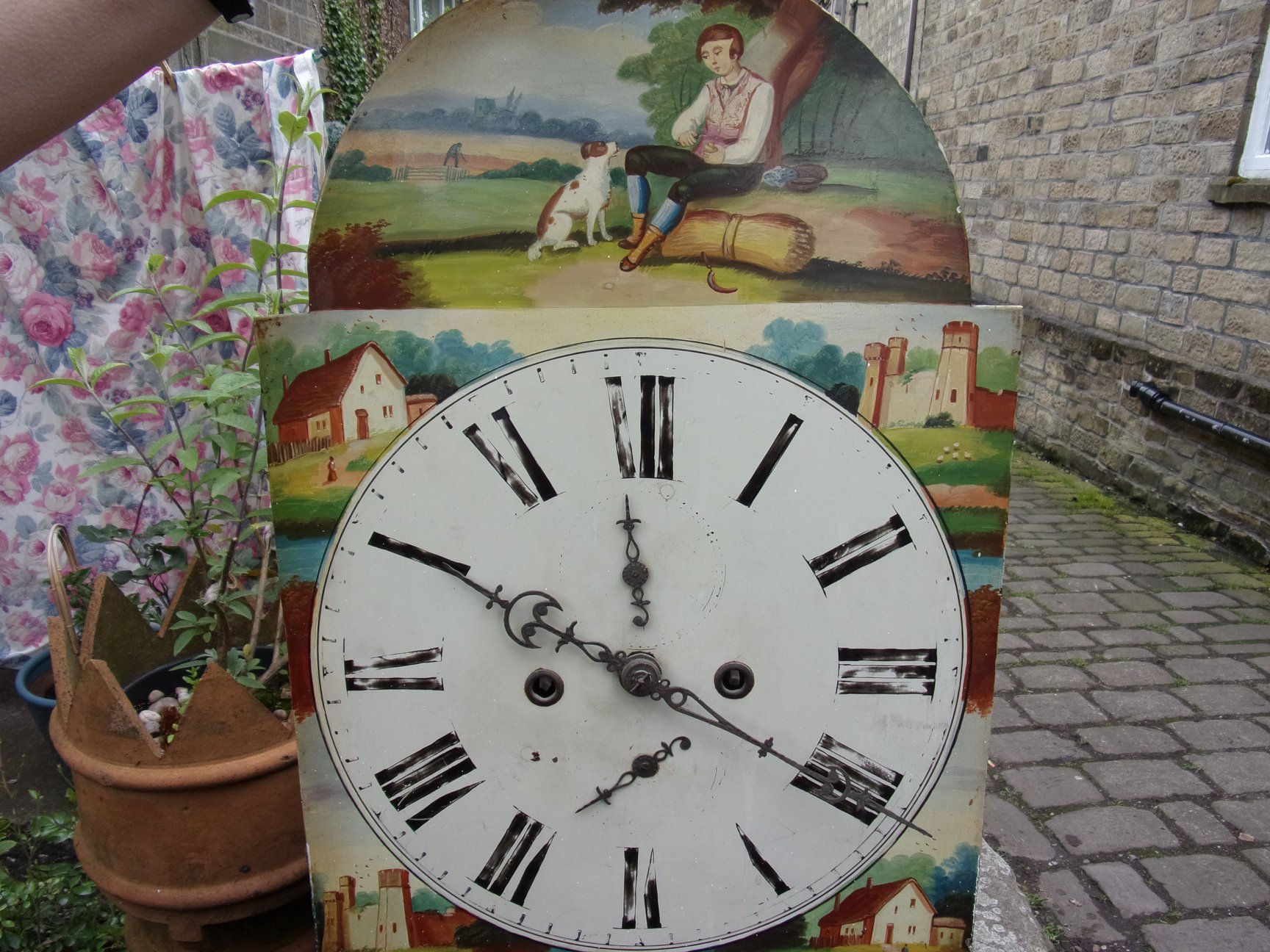

White dial longcase clock dated around 1790.

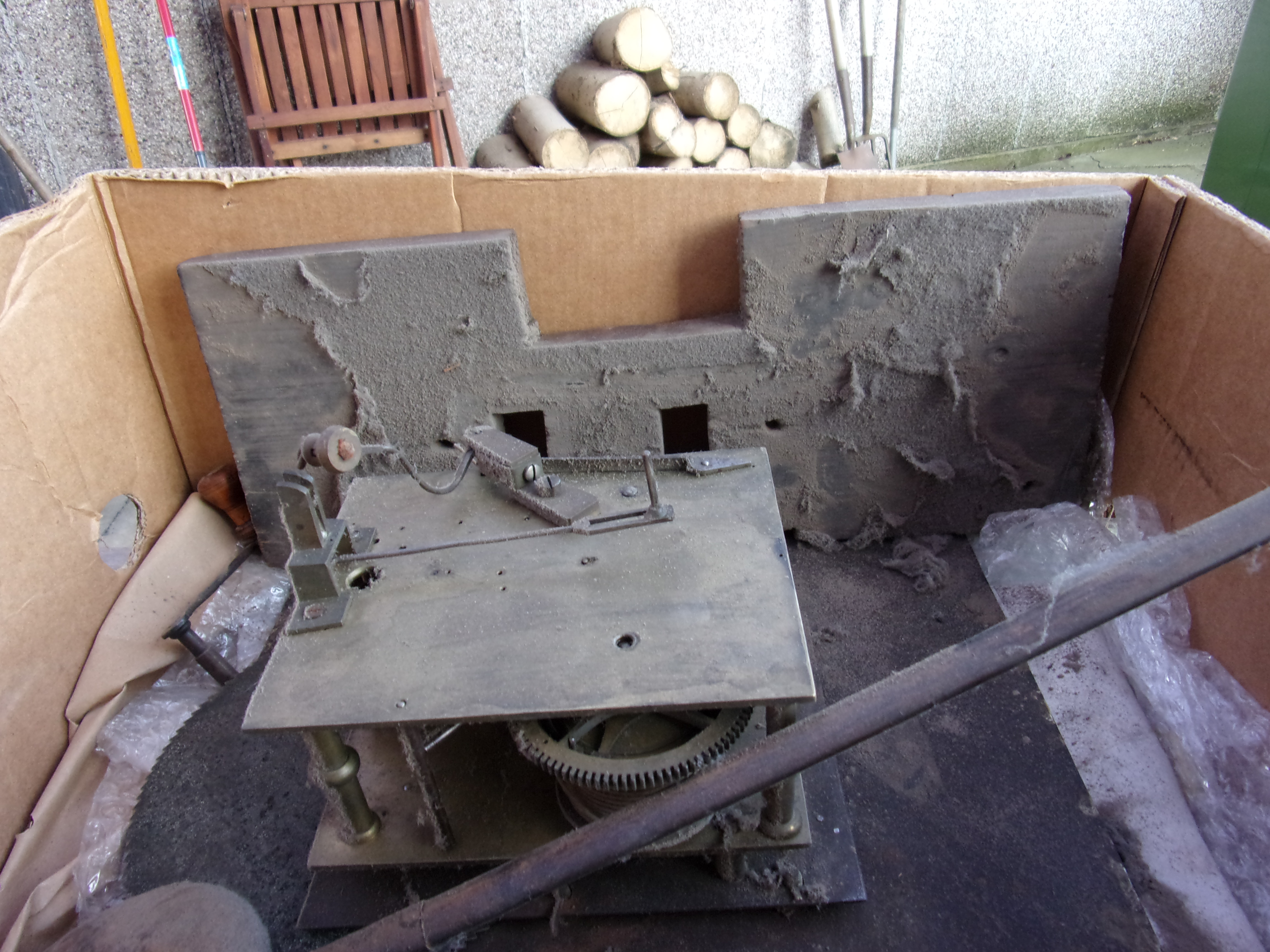

They said it needed cleaning!

American longcase

After cleaning

American longcase 4

The end product























400 day anniversary clock



Fjords

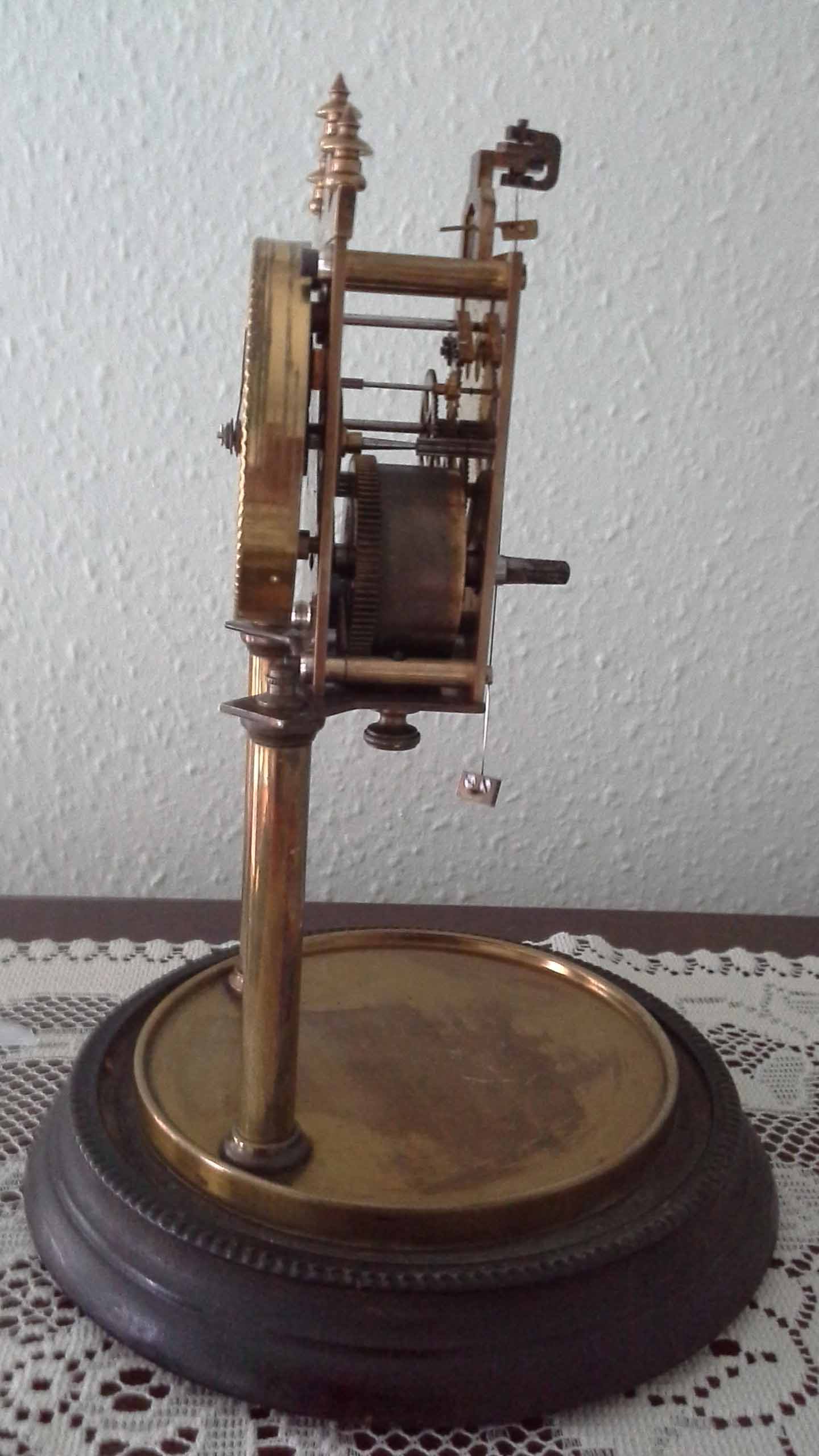

An anniversary clock before repair.

Forest

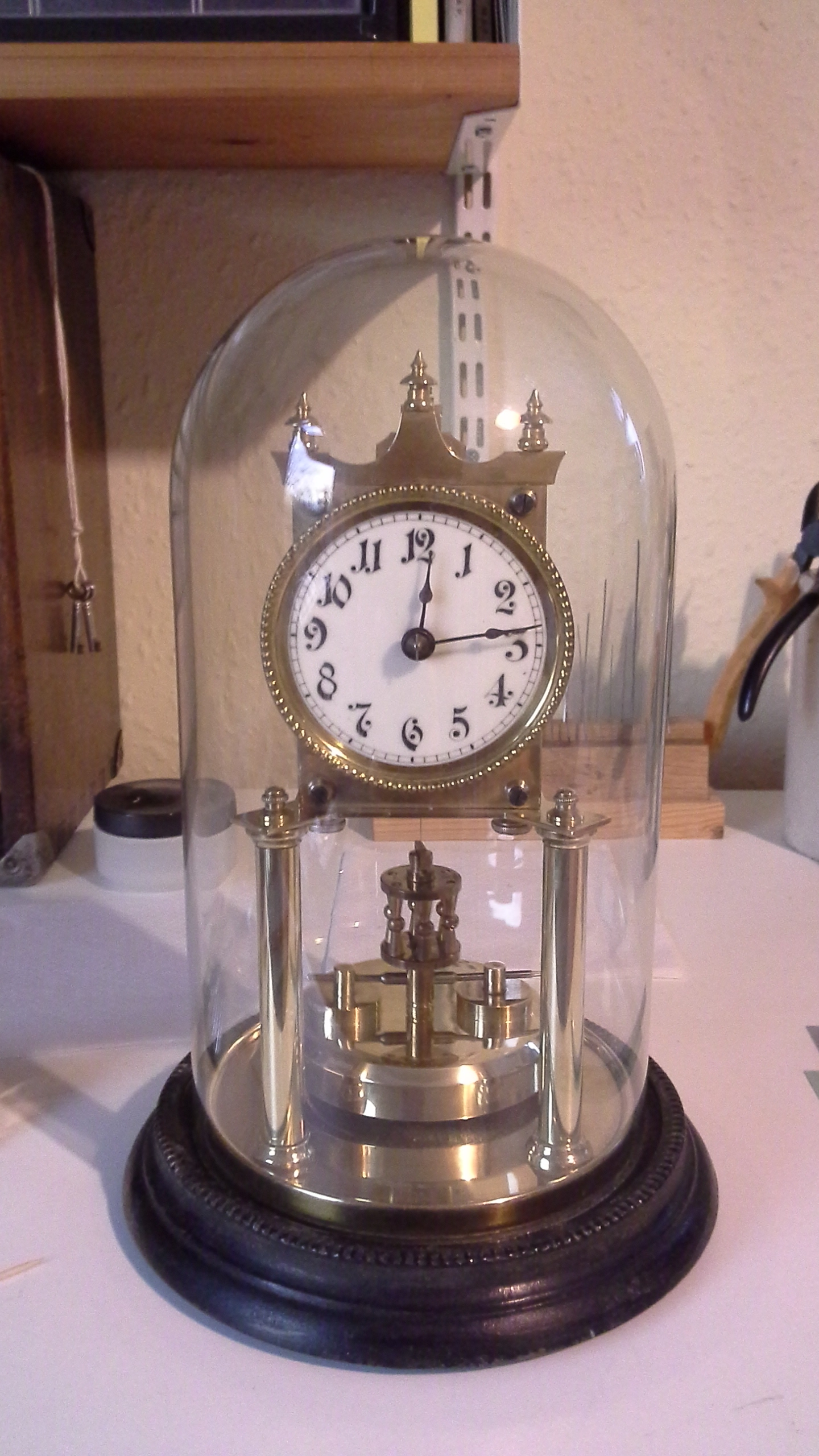

The anniversary clock after the repair
